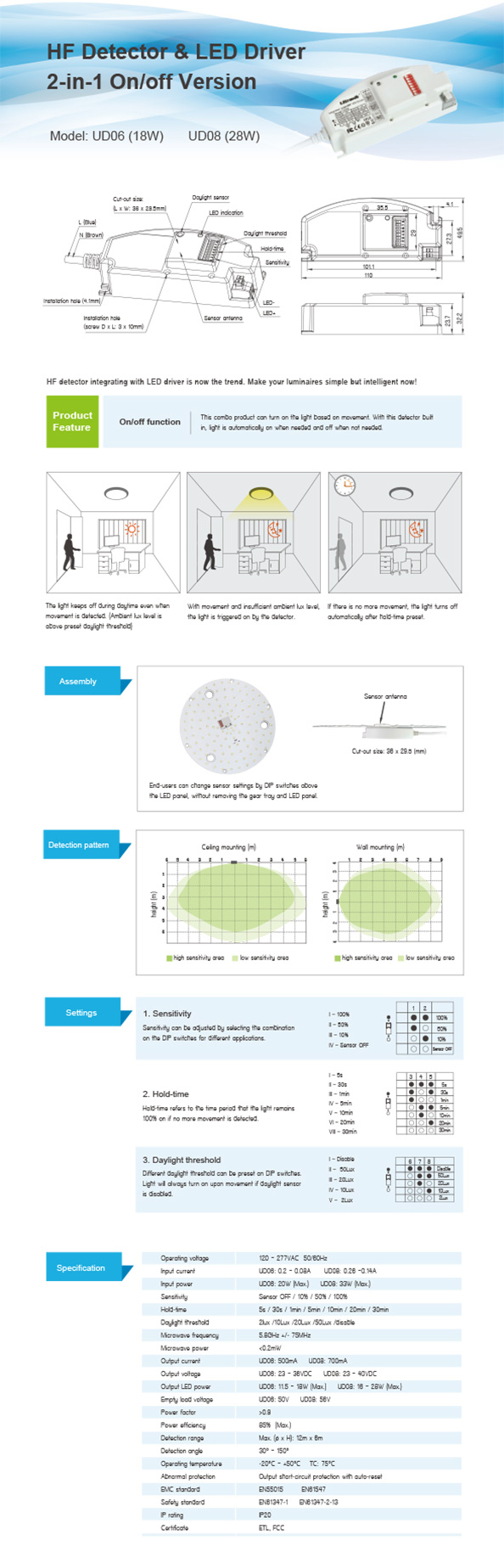

SensorDIM LED Driver UD06 (18W) / UD08 (28W)
Description
SensorDIM LED Driver UD06 (18W) / UD08 (28W)
- Details
- Send Inquiry
| HF Detector & LED Driver 2-in-1 | |
| On/off Function | |
| Technical Data | |
| Operating voltage: | 120 ~ 277VAC 50/60Hz |
| Input current: | UD06: 0.2 ~ 0.08A UD08: 0.26 ~0.14A |
| Input power: | UD06: 20W (Max.) UD08: 33W (Max.) |
| Sensitivity: | Sensor OFF / 10% / 50% / 100% |
| Hold-time: | 5s / 30s / 1min / 5min / 10min / 20min / 30min |
| Daylight threshold: | 2lux /10Lux /20Lux /50Lux /disable |
| Microwave frequency: | 5.8GHz +/- 75MHz |
| Microwave power: | <0.2mW |
| Output current: | UD06: 500mA UD08: 700mA |
| Output voltage: | UD06: 23 ~ 36VDC UD08: 23 ~ 40VDC |
| Output LED power: | UD06: 11.5 ~ 18W (Max.) UD08: 16 ~ 28W (Max.) |
| Empty load voltage: | UD06: 50V UD08: 56V |
| Power factor: | >0.9 |
| Power efficiency: | 85% (Max.) |
| Detection range: | Max. (φ x H): 12m x 6m |
| Detection angle: | 30° ~ 150° |
| Operating temperature: | -20℃ ~ +50℃ TC: 75°C |
| Abnormal protection: | Output short-circuit protection with auto-reset |
| EMC standard: | EN55015 EN61547 |
| Safety standard: | EN61347-1 EN61347-2-13 |
| IP rating: | IP20 |
| Certificate: | ETL, FCC |
