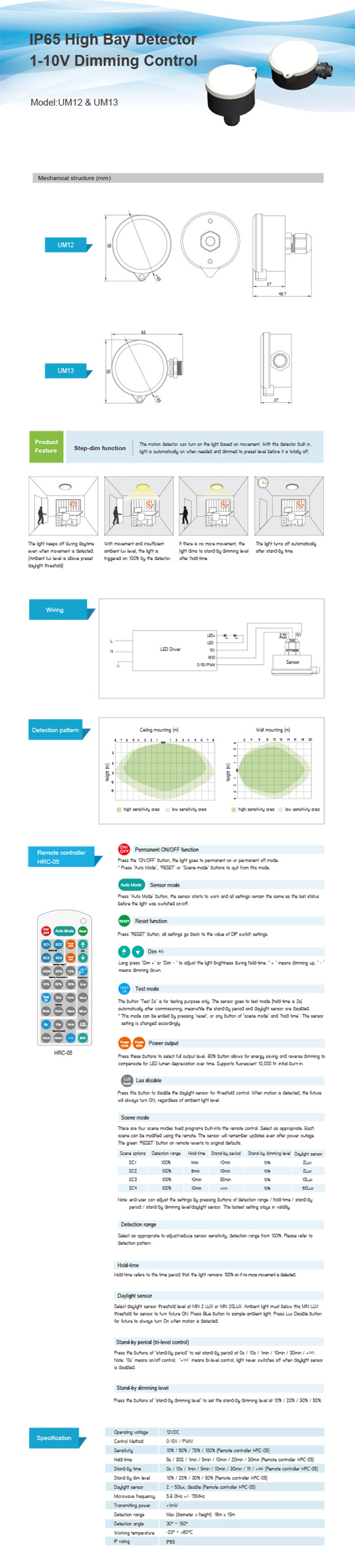

| 1-10V Dimming Control | |
| High Bay Detector | |
| IP65 | |
| Technical Data | |
| Operating voltage: | 12VDC |
| Control Method: | 0-10V / PWM |
| Sensitivity: | 10% / 50% / 75% / 100% (Remote controller HRC-05) |
| Hold-time: | 5s / 30S / 1min / 5min / 10min / 20min / 30min (Remote controller HRC-05) |
| Stand-by time: | 0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞ (Remote controller HRC-05) |
| Stand-by dim level: | 10% / 20% / 30% / 50% (Remote controller HRC-05) |
| Daylight sensor: | 2 ~ 50lux, disable (Remote controller HRC-05) |
| Microwave frequency: | 5.8 GHz + / - 75MHz |
| Transmitting power: | <1mW |
| Detection range: | Max (diameter x height): 16m x 15m |
| Detection angle: | 30 - 150 ° |
| Working temperature: | -20℃ ~ +60℃ |
| IP rating: | IP65 |
