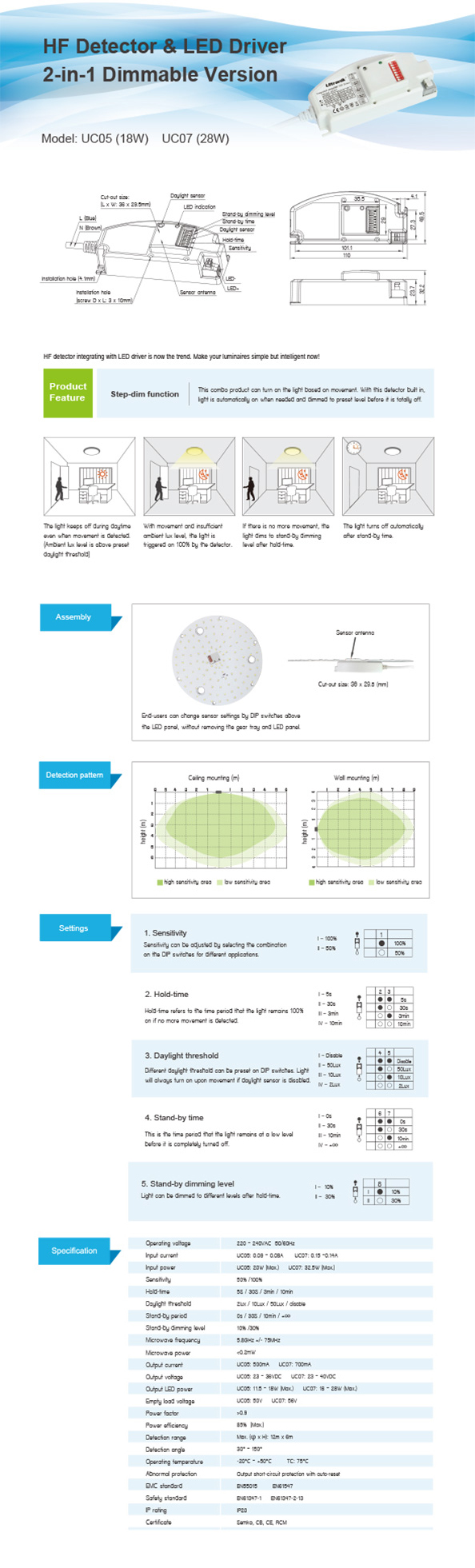

SensorDIM LED Driver UC05 (18W) / UC07 (28W)
Description
SensorDIM LED Driver UC03 (18W) / UC04 (28W)
- Details
- Send Inquiry
| HF Detector & LED Driver 2-in-1 | |
| Dimming Function | |
| Technical Data | |
| Operating voltage: | 220 ~ 240VAC 50/60Hz |
| Input current: | UC05: 0.09 ~ 0.08A UC07: 0.15 ~0.14A |
| Input power: | UC05: 20W (Max.) UC07: 32.5W (Max.) |
| Sensitivity: | 50% / 100% |
| Hold-time: | 5S / 30S / 3min / 10min |
| Daylight threshold: | 2lux / 10Lux / 50Lux / disable |
| Stand-by period: | 0s / 30S / 10min / +∞ |
| Stand-by dimming level: | 10% / 30% |
| Microwave frequency: | 5.8GHz +/- 75MHz |
| Microwave power: | <0.2mW |
| Output current: | UC05: 500mA UC07: 700mA |
| Output voltage: | UC05: 23 ~ 36VDC UC07: 23 ~ 40VDC |
| Output LED power: | UC05: 11.5 ~ 18W (Max.) UC07: 16 ~ 28W (Max.) |
| Empty load voltage: | UC05: 50V UC07: 56V |
| Power factor: | >0.9 |
| Power efficiency: | 85% (Max.) |
| Detection range: | Max. (φ x H): 12m x 6m |
| Detection angle: | 30° ~ 150° |
| Operating temperature: | -20℃ ~ +45℃ TC: 75°C |
| Abnormal protection: | Output short-circuit protection with auto-reset |
| EMC standard: | EN55015 EN61547 |
| Safety standard: | EN61347-1 EN61347-2-13 |
| IP rating: | IP20 |
| Certificate: | Semko, CB, CE, RCM |
