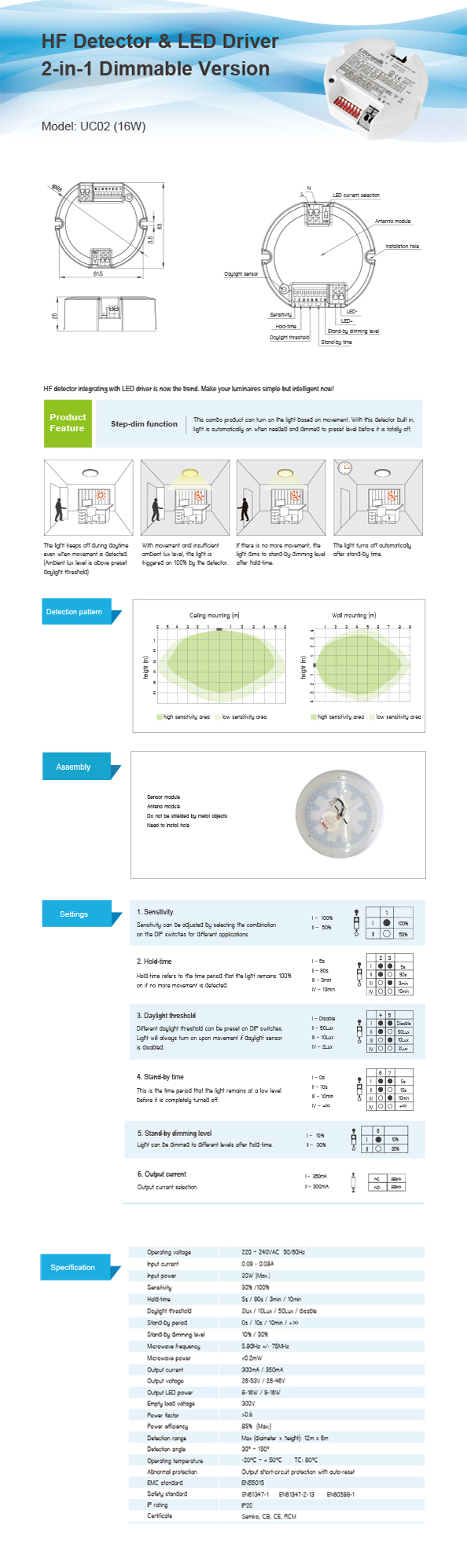

| HF Detector & LED Driver 2-in-1 | |
| Dimming Function | |
| Technical Data | |
| Operating voltage: | 220 ~ 240VAC 50/60Hz |
| Input current: | 0.09 - 0.08A |
| Input power: | 20W (Max.) |
| Sensitivity: | 50% /100% |
| Hold time: | 5s / 90s / 3min / 10min |
| Daylight threshold: | 2lux / 10Lux / 50Lux / disable |
| Stand-by period: | 0s / 10s / 10min / +∞ |
| Stand-by dimming level: | 10% / 30% |
| Microwave frequency: | 5.8GHz +/- 75MHz |
| Microwave power: | <0.2mW |
| Output current: | 300mA / 350mA |
| Output voltage: | 26-53V / 26-46V |
| Output LED power: | 8-16W / 9-16W |
| Empty load voltage: | 300V |
| Power factor: | >0.9 |
| Power efficiency: | 85% (Max.) |
| Detection range: | Max (diameterxheight): 12m x 6m |
| Detection angle: | 30° ~ 150° |
| Operating temperature: | -20℃ ~ +60℃ TC: 80°C |
| Abnormal protection: | Output short-circuit protection with auto-reset |
| EMC standard: | EN55015 |
| Safety standard: | EN61347-1 EN61347-2-13 EN60598-1 |
| IP rating: | IP20 |
| Certificate: | Semko, CB, CE, RCM |
