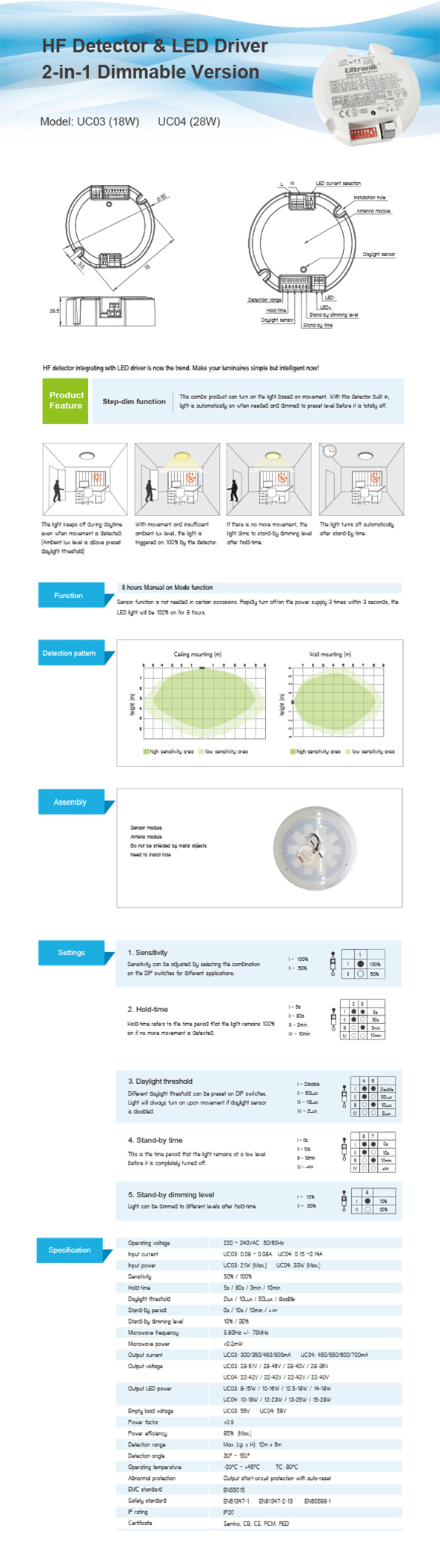

SensorDIM LED Driver UC03 (18W) / UC04 (28W)
Description
SensorDIM LED Driver UC03 (18W) / UC04 (28W)
- Details
- Send Inquiry
| HF Detector & LED Driver 2-in-1 | |
| Dimming Function | |
| Technical Data | |
| Operating voltage: | 220 ~ 240VAC 50/60Hz |
| Input current: | UC03: 0.09 ~ 0.08A UC04: 0.15 ~0.14A |
| Input power: | UC03: 21W (Max.) UC04: 33W (Max.) |
| Sensitivity: | 50% / 100% |
| Hold-time: | 5s / 90s / 3min / 10min |
| Daylight threshold: | 2lux / 10Lux / 50Lux / disable |
| Stand-by period: | 0s / 10s / 10min / +∞ |
| Stand-by dimming level: | 10% / 30% |
| Microwave frequency: | 5.8GHz +/- 75MHz |
| Microwave power: | <0.2mW |
| Output current: | UC03: 300/350/450/500mA UC04: 450/550/600/700mA |
| Output voltage: | UC03: 28-51V / 28-46V / 28-40V / 28-36V UC04: 22-42V / 22-42V / 22-42V / 22-40V |
| Output LED power: | UC03: 8-15W / 10-16W / 12.5-18W / 14-18W UC04: 10-19W / 12-23W / 13-25W / 15-28W |
| Empty load voltage: | UC03: 56V UC04: 58V |
| Power factor: | >0.9 |
| Power efficiency: | 85% (Max.) |
| Detection range: | Max. (φ x H): 12m x 6m |
| Detection angle: | 30° ~ 150° |
| Operating temperature: | -20℃ ~ +45℃ TC: 80°C |
| Abnormal protection: | Output short-circuit protection with auto-reset |
| EMC standard: | EN55015 |
| Safety standard: | EN61347-1 EN61347-2-13 EN60598-1 |
| IP rating: | IP20 |
| Certificate: | Semko, CB, CE, RCM, RED |
