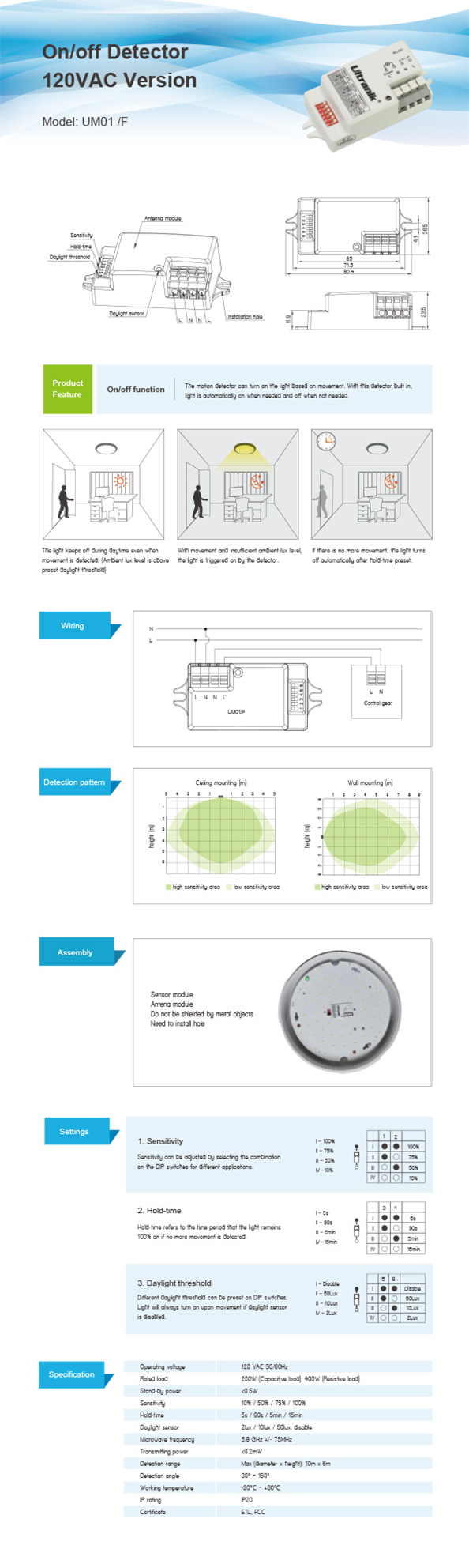

| On/off Detector | |
| 120VAC Version | |
| Technical Data | |
| Operating voltage: | 120 VAC 50/60Hz |
| Rated load: | 200W (Capacitive load); 400W (Resistive load) |
| Stand-by power: | <0.5W |
| Sensitivity: | 10% / 50% / 75% / 100% |
| Hold time: | 5s / 90s / 5min / 15min |
| Daylight sensor: | 2lux / 10lux / 50lux, disable |
| Microwave frequency: | 5.8 GHz +/- 75MHz |
| Transmitting power: | <0.2mW |
| Detection range: | Max (diameterxheight): 10m x 6m |
| Detection angle: | 30° ~ 150° |
| Working temperature: | -20℃ ~ +60℃ |
| IP rating: | IP20 |
| Certificate: | ETL, FCC |
