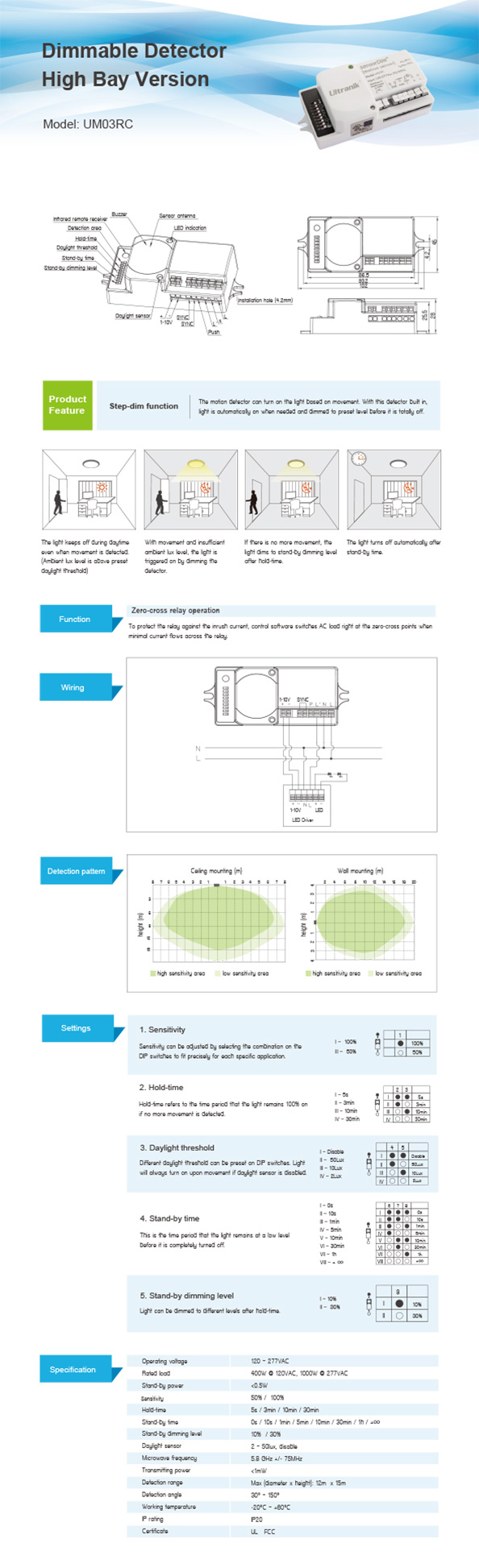

Dimmable Detector High Bay Version UM03RC
Description
Dimmable Detector High Bay Version UM03RC
- Details
- Send Inquiry
| 1-10V Dimming Control | |
| High Bay Detector | |
| Technical Data | |
| Operating voltage: | 120 ~ 277VAC |
| Rated load: | 400W @ 120VAC, 1000W @ 277VAC |
| Stand-by power: | <0.5W |
| Sensitivity: | 50% / 100% |
| Hold time: | 5s / 3min / 10min / 30min |
| Stand-by time: | 0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞ |
| Stand-by dimming level: | 10% / 30% |
| Daylight sensor: | 2 ~ 50lux, disable |
| Microwave frequency: | 5.8 GHz +/- 75MHz |
| Transmitting power: | <1mW |
| Detection range: | Max (diameter x height): 12m x 15m |
| Detection angle: | 30° ~ 150° |
| Working temperature: | -20℃ ~ +60℃ |
| IP rating: | IP20 |
| Certificate: | UL FCC |
