On/off Detector Compact Version UC01
Description

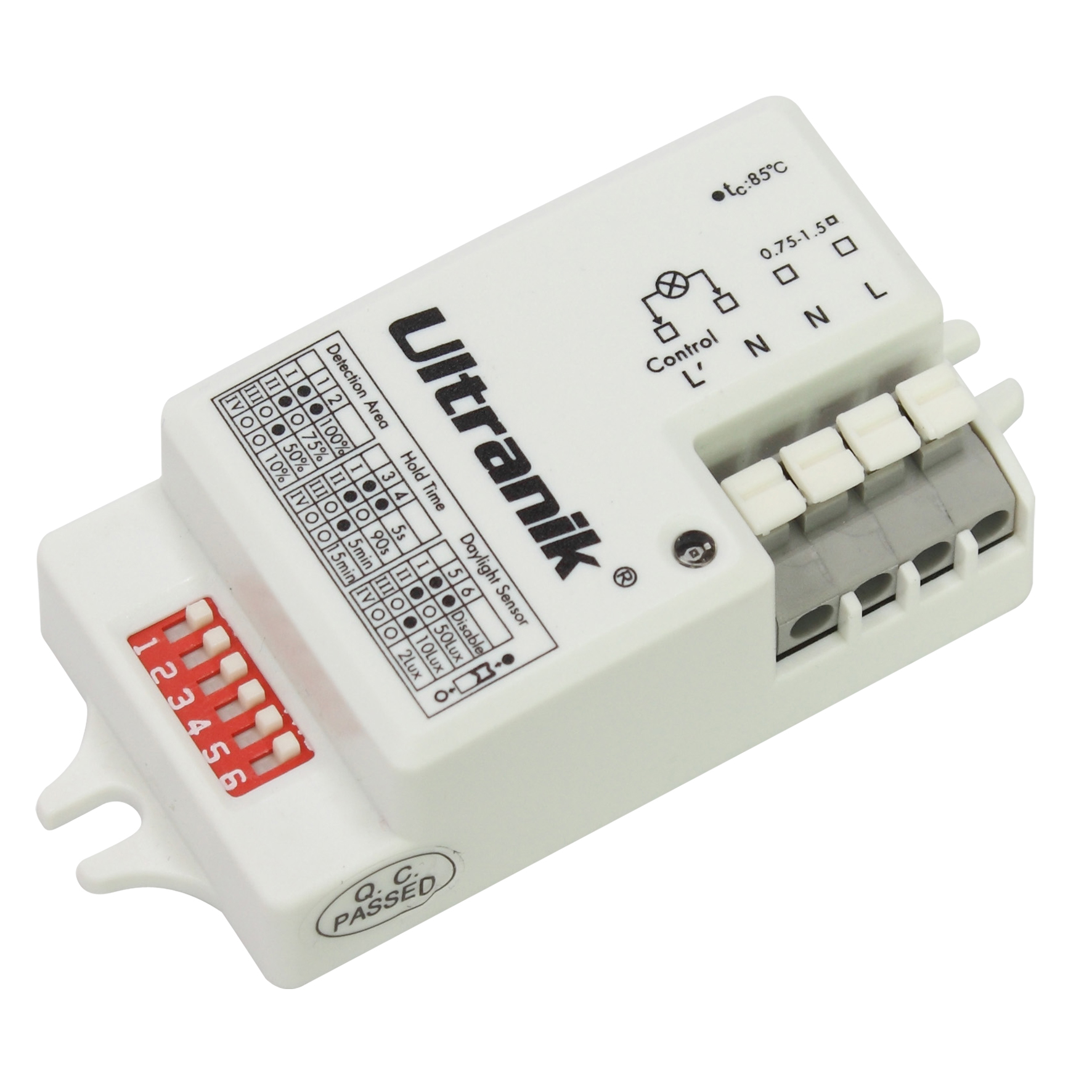

On/off Detector Compact Version UC01
- Details
- Send Inquiry
| On/off Detector | |
| Compact Version | |
| Technical Data | |
| Operating voltage : | 220 ~ 240 VAC 50/60Hz |
| Rated load: | 400W (Capacitive load) 800W (Resistive load) |
| Standby power: | <0.5W |
| Sensitivity: | 10% / 50% / 75% / 100% |
| Hold time: | 5s / 90s / 5min / 15min |
| Daylight sensor: | 2lux / 10lux / 50lux, disable |
| Microwave frequency: | 5.8GHz+/-75 MHz |
| Transmitting power: | <0.2mW |
| Detection range: | Max (diameterxheight): 10m x 6m |
| Detection angle: | 30° ~ 150° |
| Working temperature: | -20℃ ~ +60℃ |
| IP rating: | IP20 |
| Certificate: | Semko, CB, CE, RCM, RoHs, RED |
