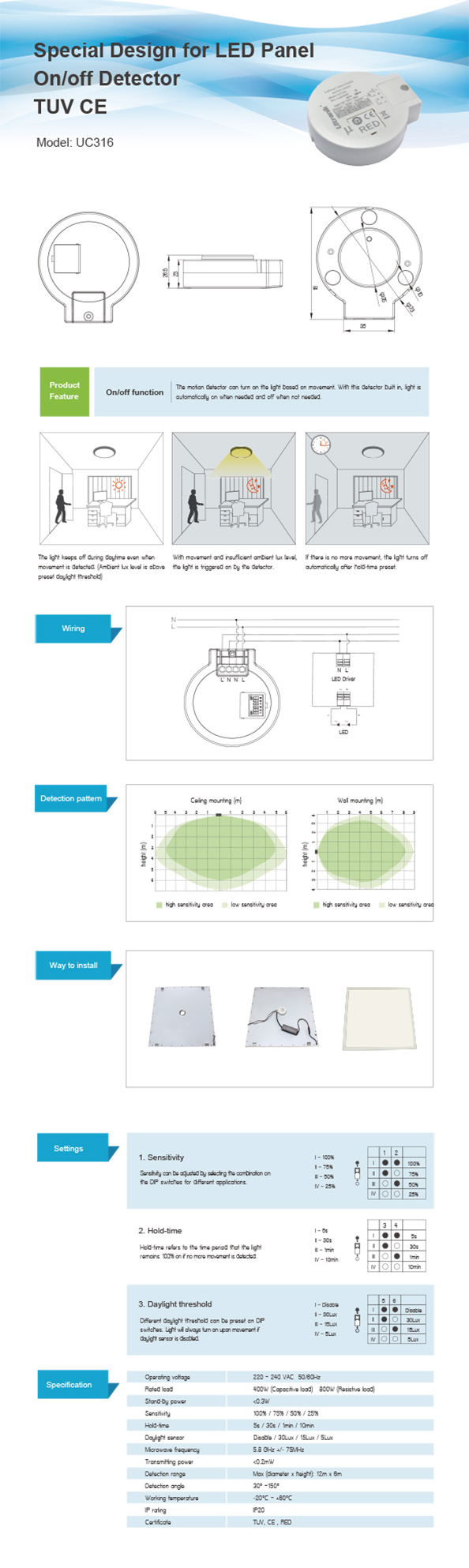

On/off Detector UC316- Special Design for LED Panel
Description
On/off Detector UC316- Special Design for LED Panel
- Details
- Send Inquiry
| On/off Detector | |
| Round Shape | |
| Technical Data | |
| Operating voltage: | 220 ~ 240 VAC 50/60Hz |
| Rated load: | 400W (Capacitive load) 800W (Resistive load) |
| Stand-by power: | <0.3W |
| Sensitivity: | 100% / 75% / 50% / 25% |
| Hold time: | 5s / 30s / 1min / 10min |
| Daylight sensor: | Disable / 30Lux / 15Lux / 5Lux |
| Microwave frequency: | 5.8 GHz +/- 75MHz |
| Transmitting power: | <0.2mW |
| Detection range: | Max (diameter x height): 12m x 6m |
| Detection angle: | 30° ~150° |
| Working temperature: | -20℃ ~ +60℃ |
| IP rating: | IP20 |
| Certificate: | TUV, CE , RED |
