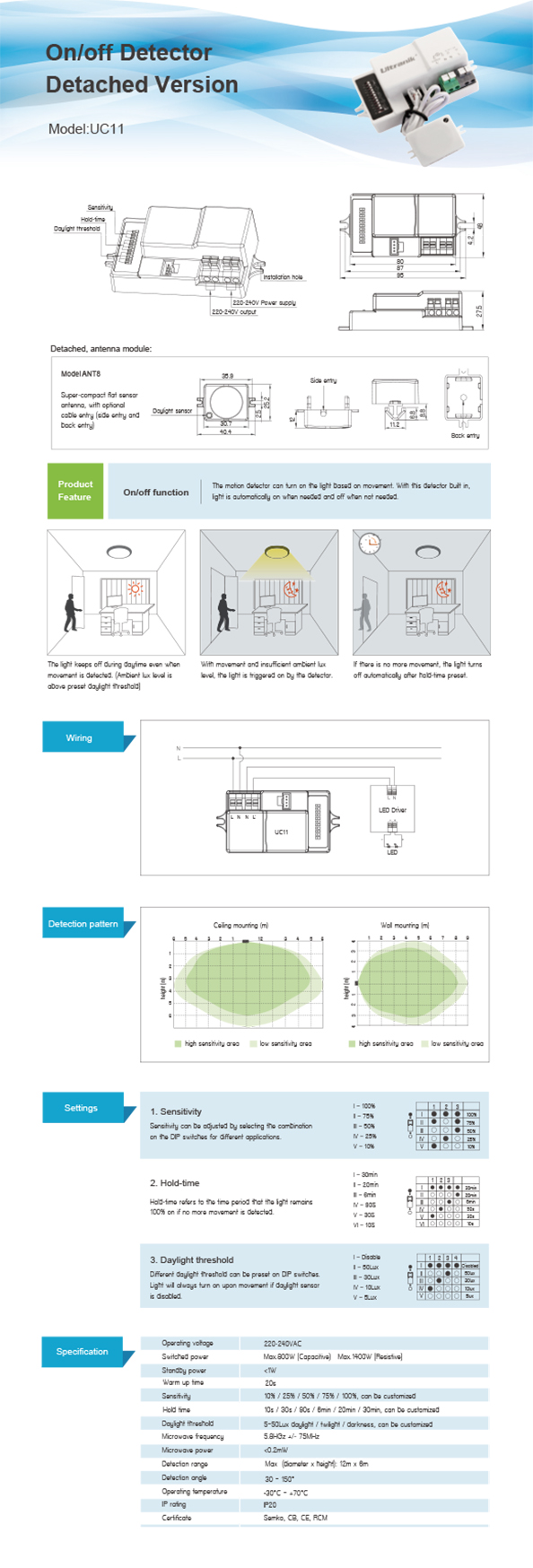

| On/off Detector | |
| Detached Version | |
| Technical Data | |
| Operating voltage: | 220-240VAC |
| Switched power: | Max.800W (Capacitive) Max.1400W (Resistive) |
| Stand-by power: | <1w |
| Warm up time: | 20s |
| Sensitivity: | 10% / 25% / 50% / 75% / 100%, can be customized |
| Hold time: | 10s / 30s / 90s / 6min / 20min / 30min, can be customized |
| Daylight threshold: | 5~50Lux daylight / twilight / darkness, can be customized |
| Microwave frequency: | 5.8HGz +/- 75MHz |
| Microwave power: | <0.2mW |
| Detection range: | Max (diameter x height): 12m x 6m |
| Detection angle: | 30 ~ 150° |
| Operating temperature: | -30℃ ~ +70℃ |
| IP rating: | IP20 |
| Certificate: | Semko, CB, CE, RCM |
