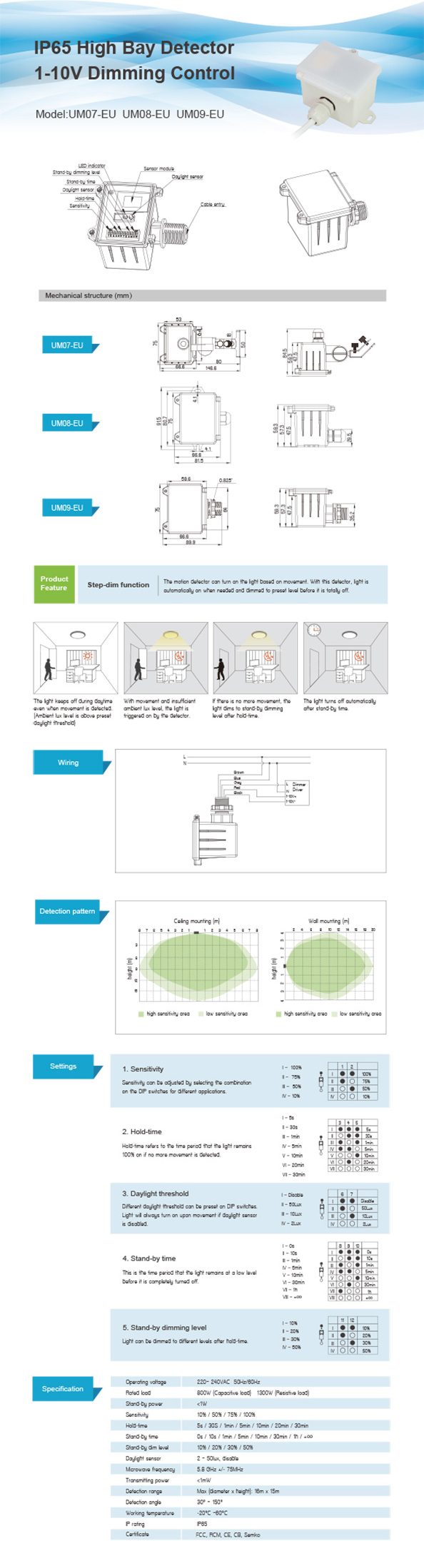

| 1-10V Dimming Control | |
| High Bay Detector | |
| IP65 | |
| Technical Data | |
| Operating voltage: | 220~ 240VAC 50Hz/60Hz |
| Rated load: | 800W (Capacitive load) 1300W (Resistive load) |
| Stand-by power: | <1W |
| Sensitivity: | 10% / 50% / 75% / 100% |
| Hold time: | 5s / 30S / 1min / 5min / 10min / 20min / 30min |
| Stand-by time: | 0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞ |
| Stand-by dim level: | 10% / 20% / 30% / 50% |
| Daylight sensor: | 2 ~ 50lux, disable |
| Microwave frequency: | 5.8 GHz +/- 75MHz |
| Transmitting power: | <1mW |
| Detection range: | Max (diameter x height): 16m x 15m |
| Detection angle: | 30° ~ 150° |
| Working temperature: | -20℃ ~ +60℃ |
| IP rating: | IP65 |
| Certificate | FCC, RCM, CE, CB, Semko |
